Video Conference Tools
VB370A
← Back to Products
Video Conference Tools
Video Conference ToolsSKU: VB370A

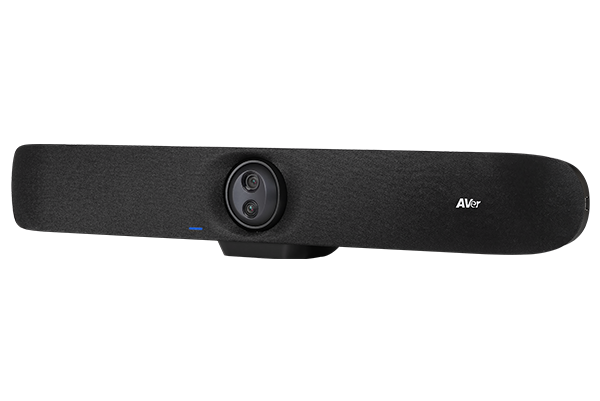

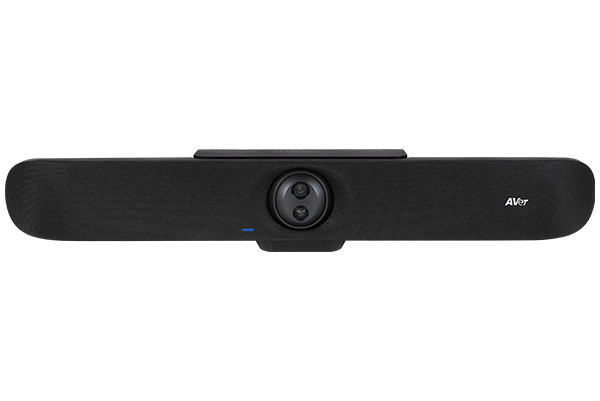

4K Dual Lens Video Bar The AVer VB370A 4K dual-lens video conferencing bar delivers superior video and audio quality, ensuring every participant feels present. Smart AI-driven Voice Tracking guarantees clear communication, while the ready-to-go setup makes connecting simple. Designed for mid-to-large spaces, the VB370A supports dual-screen displays and can easily scale to accommodate growing teams. Being certified by Zoom and powered by Android™ allows the VB370A to deliver truly engaging and productive virtual meetings.
Specifications
PTZ CAMERA
Image Sensor: 1/2.8” 4K Sony Exmor CMOS
Frame Rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps
Effective Picture Elements: 8 Megapixels
Output Resolutions: Up to 4K/30
Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio: ≥ 50 dB
Gain: Auto
TV Line: 1500 (Center)
Shutter Speed: Auto
Exposure Control: Auto
White Balance: Auto, Manual
Hybrid Optical Zoom: 4.5X
Digital Zoom: 4X
Total Zoom: 18X
Viewing Angles:
Viewing Area: Pan: 141°, Tilt: 78°
Preset Positions: 128*
Camera Control - Interfaces: IP, USB, Remote Control, AVer CP10 G2, Zoom Rooms Controller App
Camera Control - Protocols:
Image Processing: WDR, 3D/2D Digital Noise Reduction
Power Frequencies: 50 Hz, 60 Hz
FIXED CAMERA
Image Sensor: 1/2.5” 4K Sony Exmor CMOS
Frame Rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps
Effective Picture Elements: 8 Megapixels
Output Resolutions: Up to 4K/30
Viewing Angles:
Viewing Area: Pan: 170°, Tilt: 103°
SPEAKER
Volume: 96 dB SPL at 0.5 Meter Peak
Sensitivity: 81 ±2dB SPL at T/S Parameter
Frequency Response: 110 Hz to 20 KHz
Sample Rates: 48 KHz
MICROPHONES
Beamforming Elements: 14
Pickup Range: 10 Meters
Sensitivity: -35 ±1dB FS
Frequency Response: 100 Hz to 12 KHz
Acoustic Echo Cancellation (AEC): Yes
Automatic Gain Control (AGC): Yes
Noise Suppression: Yes
Sample Rates: 24 KHz
Add-on Microphones: Yes
Expansion Microphone: Yes (One Microphone Only)
Expansion Speakerphone: Yes (One Speakerphone Only)

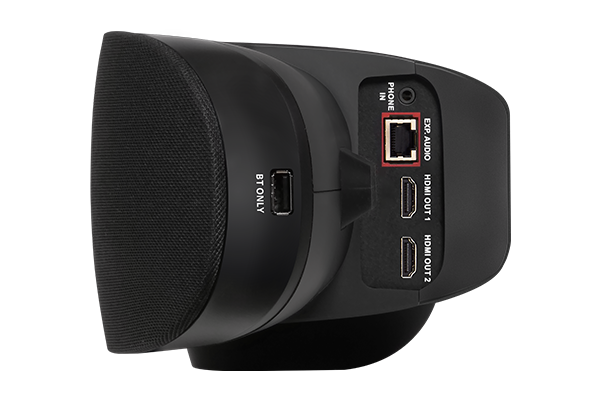

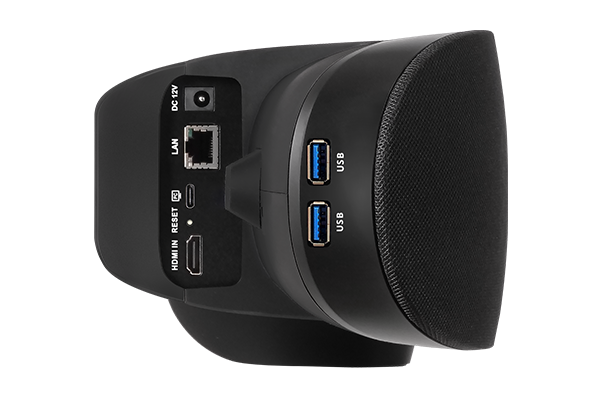

INTERFACES
HDMI® Output: 2
HDMI® Input: 1
USB: USB Type-A x 3, USB 3.0 Type-C (DisplayPort Alternate Mode) x 1
Network: RJ-45 x 1
Line In: 1
Audio In/Out: RJ-45 x 1
VoIP & SECURITY PROTOCOLS
SIP/H.323 Supported: IPv4, IPv6
Audio Protocol: G.711alaw, G.711 ulaw, G.722, G.722.1 24k, G.722.1 32k, G.722.1c 24k, G.722.1c 32k, G.722.1c 48k, G.729
Video Protocol: H.264, H.264 HP
Encryption: AES 128, HTTPS, TLS
Secure Real-time Transport Protocol (SRTP): Yes
GENERAL
Operating System: Android™ 13
Power Requirement: AC 100 - 240V to DC 12V/7.5A
Power Consumption: 90W
Dimensions (W x H x D): 790 x 129 x 138 mm
Net Weight: 3.7 ±0.1 kg
Application: Indoor
Security: Kensington Slot
Remote Control: Infrared
Operating Conditions: Temperature: 0 °C to +40 °C, Humidity: 20% to 80%
Storage Conditions: Temperature: -20 °C to +60 °C, Humidity: 20% to 80%
USB
Connector: USB 3.1
Video Format: YUY2, MJPEG
Audio Format: PCM
Maximum Video Resolution: 4K 30fps
USB Video Class (UVC): UVC 1.1
USB Audio Class (UAC): UAC 2.0
WEB UI
Live Video Preview: Yes
Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
Camera/Image Adjustment: Exposure, White Balance, Picture
Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
AVER AI TECHNOLOGIES
Onboard AI: Yes
Video AI: Auto Framing
Audio AI: Voice Tracking, Audio Fence, Beamforming Technology
CERTIFICATIONS
Zoom
COMPATIBILITY
Software & Apps (for BYOD Mode): Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit
WARRANTY
Camera: 3 Years
Accessories: 1 Year
PACKAGE CONTENTS
VB370A
Power Adapter
Power Cable
Remote Control
HDMI® Cable
Tripod Screw (x2)
Wall-Mount Bracket
Drilling Paper
OPTIONAL ACCESSORIES
AVer CP10 G2 Touch Panel (We offer a 3-year warranty)
USB 3.0 Type-C to Type-C Cable
Expansion Speakerphone
Expansion Microphone
TV VESA Mount
- * Available in next firmware upgrade.
- ** Specifications may vary depending on location and are subject to change without notice.
- † Android is a trademark of Google LLC.
- ‡ All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
