Video Conference Tools
VC520 Pro3
← Back to Products
Video Conference Tools
Video Conference ToolsSKU: VC520 Pro3
Professional camera and speakerphone for mid-to-large room meeting The VC520 Pro3 stands out as an advanced conferencing system. It boasts a 36X total zoom PTZ camera, enhanced AVer SmartFrame, Preset Framing, and a Sony WDR sensor. Additionally, the VC520 Pro3 offers 3-way outputs, including HDMI® connectivity, for a wider range of streaming options and a superior video and audio experience. But what truly sets the VC520 Pro3 apart is its Smart Composition feature, an embedded AI function designed to swiftly capture high-quality closeup images of meeting participants. And with an extended speakerphone solution, the VC520 Pro3 delivers an exceptional video conferencing experience.
Specifications

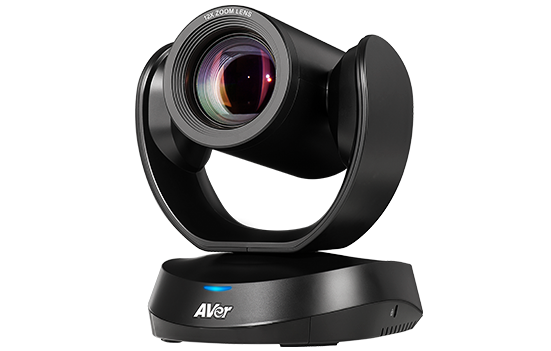

Camera
Image Sensor: 1/2.8” 4K Sony Exmor CMOS
Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
SmartFrame for automatic FOV adjustment to fit all participants.
Smart Composition function offers great visibility for the individual participant in the meeting room.
Innovative Preset Framing: Follow the presenter based on preset areas.
WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions.
Zoom: 36X* Total Zoom (12X Optical Zoom)
Viewing Angles: DFOV: 80.5°, HFOV: 72.8°, VFOV: 44.1°
Lens Focal Length: 3.9 mm (wide) ~ 46.8 mm (tele)
Lens F#: 1.6 (wide) ~ 2.8 (tele)
Mirror, Flip, White Balance: Auto/Manual override via Room Management
Minimum Focus Distance: 1 meter
Standard tripod screw holes and Kensington slot.
People-counting API: Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage.
Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 Camera Presets (via remote control)
Video Format
YUV, YUY2, MJPEG
Network Video Compression Format: H.264, H.265
Network Protocol: RTSP, RTMP

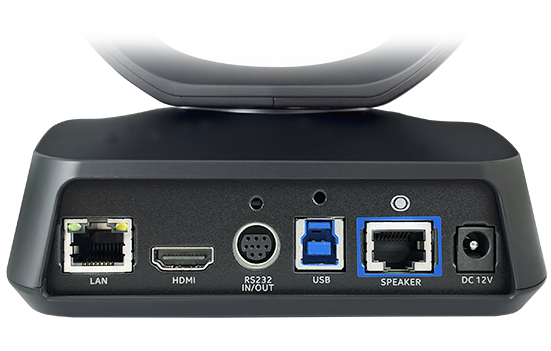

Connectivity
12V/5A Power Adaptor
Mini DIN9 for RS-232 In & Out Connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B Connector
IP (RJ-45)
HDMI® Out
USB
Connector: USB 3.1
USB Video Class (UVC): UVC 1.1
USB Audio Class (UAC): UVC 1.0
Control
IR Remote Control
VISCA/Pelco-P/Pelco-D via RS-232 (128 preset points via VISCA command)
Remote Side: VISCA over IP, IP (RJ-45)
UVC/UAC Plug-and-Play
WebUI: Browser IP access via Chrome browser
Room Management (PTZApp 2)
Mount
Camera Wall-Mount Bracket
Foldable TV mount (Optional)
Ceiling Mount (Optional)
System Requirements
Windows® 7/10/11
Mac OS X 10.4 or later
Google Chromebook™ version 94.0.4606.114 or later
PC Hardware Requirements
3.2 GHz Intel® Core™ i5-4460 Processor
4 GB RAM or more
USB 3.1 Port (Backward compatible with USB 2.0 port)
Webpage Browser Requirements
Chrome: Version 76.x or above
Firefox: Version 69 or above
Internet Explorer: Not support
Software Tools
EZManager 2
Supports Windows® 7 or later
Room Management
Supports Windows® 7 or later, macOS® 11.6 or later
EZLive
Supports Windows® 7 or later
Enterprise Management
Supports Windows® 10 or later
Cloud Management
Supports Chrome™ & Microsoft Edge browsers

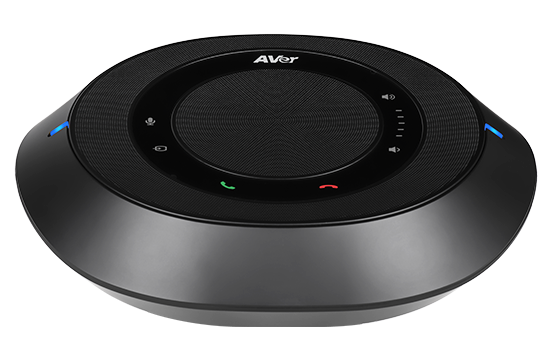

Speakerphone
Acoustic Echo Cancellation (AEC): Yes
Noise Suppression: Yes
Dual-omnidirectional Microphone
3.5 mm Phone-in Jack
3.5 mm Line Out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch Controls for volume down/up, mute, phone input, call, hang-up
Bridge phone-in and USB into one call
Security: Kensington Slot
Audio Format
AAC-LC
Network Protocol: RTSP, RTMP
Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 5A
Dimensions
Package Dimension (W x H x D): 259 x 259 x 349 mm
Package Weight: 5.805 kg
Camera Dimension (W x H x D): 182 x 142.7 x 153 mm; Net Weight: 1.47 kg
Speakerphone Dimension (W x H x D): 220 x 181.5 x 49.5 mm; Net Weight: 0.85 kg
Package Contents
VC520 Pro3 Camera
VC520 Pro3 Speakerphone
Remote Control
Power Adapter
Power Cord
USB 2.0 Type-B to Type-A Cable
Camera to Speakerphone Cable
3.5 mm aux Cable
Wall-Mount Bracket
Tripod Screw
QR Code Card
Optional Accessories
Mini DIN8 to D-SUB9 RS-232 Adapter
Expansion Speakerphone
Expansion Microphone
Foldable TV Mount
USB 3.1 Fiber Extender
USB3.1 Type-B to Type-A Cable
Ceiling Mount
Environmental Data
Operating Temperature: 0 °C to +40 °C
Operating Humidity: 20% to 80%
Storage Temperature: -20 °C to +60 °C
Storage Humidity: 20% to 80%
Warranty
Camera / Speakerphone: 3 Years
Accessories: 1 Year
Compatible Applications
Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
- *Please use Room Management to set up 36X zoom.
- All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
