Video Conference Tools
VC540
← Back to Products
Video Conference Tools
Video Conference ToolsSKU: VC540
4K Conference Camera with Bluetooth® Speakerphone for Medium-to-Large Rooms The VC540 pairs an upgraded speakerphone with a 16X total zoom camera to make remote meetings feel like in-person interactions. With 4K camera quality and IP-based management features for the speakerphone, the VC540 is the professional conferencing system that truly meets your enterprise needs.
Specifications

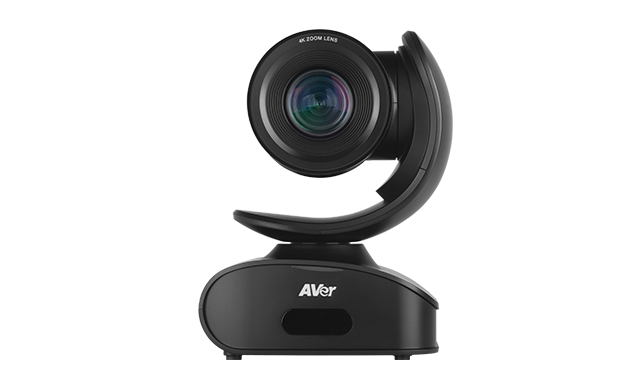

Camera
Ultra-crystal-clear image support up to 4K
Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
SmartFrame: automatic FOV adjustment to fit all participants
16X zoom
Autofocus: minimum working distance 1 meter
86° horizontal field of view
Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
Standard tripod screw holes
Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

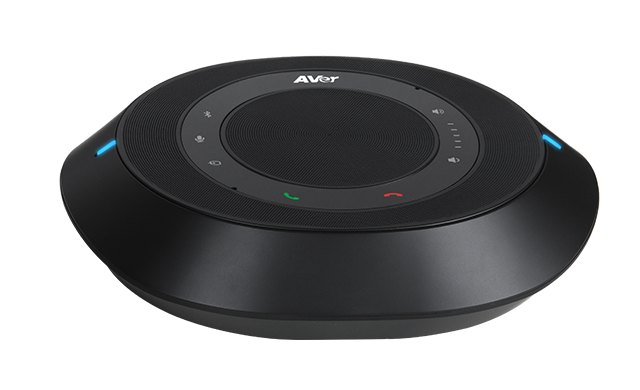

Speakerphone
Bluetooth / USB Wired
Full-duplex microphone array with echo cancellation
Advanced noise suppression
2-microphone array
3.5 mm phone-in Jack
3.5 mm line out
Speaker volume: adjustable to 90 dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input, call, and hang up
Can bridge phone-in and USB into one call
Security: Kensington slot
Motorized Pan & Tilt Movement
Pan: ±160°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement

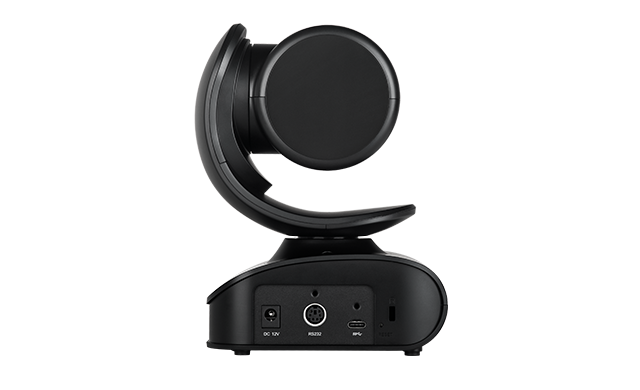

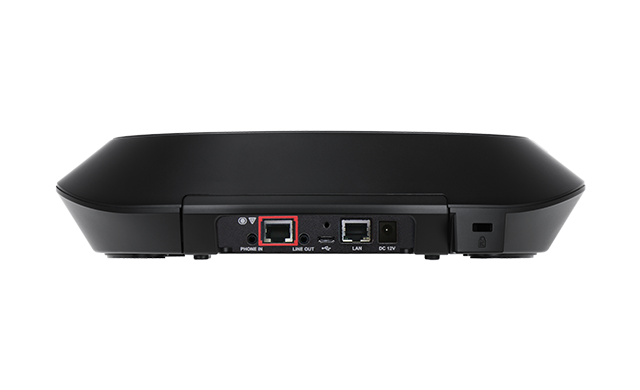

Connectivity
Mini DIN 6 for RS232 connector for camera
USB Type-C connector for camera
Micro USB connector for speakerphone
IP (RJ45) connector for speakerphone
Bluetooth for speakerphone
Video Format
YUV, MJPEG
USB
2.0, 3.1 Gen1
UVC (USB Video Class) 1.1
UAC (USB Audio Class) 1.0
Control
IR remote control
VISCA/pelco and P/pelco D via RS232
UVC/plug-and-play
Room Management (PTZApp 2)
Optional Accessories
Mini DIN 6 to RS232 adapter for camera
Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
USB 2.0 type-C to type-A Cable (16 ft)
Warranty
Camera/Speakerphone: 3+2 years
Accessories: 1 year
Security and Mount
Camera mount included for wall or ceiling
Kensington slot
System Requirements
Windows 7/10/11
Mac OS X 10.14 or later
Chromebox 3 version 94.0.4606.114 or later
Hardware Specifications
Processor: 3.2 GHz Intel® Core™i5-4460 or later
4 GB RAM
USB 3.1 port, backward compatible with USB 2.0 port
Free Applications for Meeting Collaboration
Room Management (PTZApp 2)
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
EZLive
Real-time streaming / annotating / snapshots /video recording
Environmental Data
Package dimensions: 259 x 259 x 349 mm
Package weight: 4.6 kg
Camera: 130.7 x 97.8 x 171.1 mm
Speakerphone: 220 x 181.5 x 49.5 mm
Remote control: 200 x 50 x 21 mm
Package Contents
CAM540 Camera
FONE540 Speakerphone
Remote control
Power adapter x 2
Power cord (6 ft)
USB 3.1 type-C to type-A Cable (6 ft)
Micro USB 2.0 to Type-A cable (16 ft)
3.5 mm aux cable (3 ft)
Warranty card
Quick Start Guide
Metal mount, tripod screws
Batteries
Compatible Applications
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
- For 4K UHD support, please check your system/hardware requirements with your software application provider.
- Please register online to receive a free 2-year warranty extension. For detailed warranty information, please contact an AVer representative.
