VC550
AVerVideo Conference Tools
SKU: VC550

Superior Dual-Lens Audiovisual System for Collaboration The upgraded VC550 delivers unprecedented audiovisual quality with AVer’s Scalable Speakerphone technology, flexibly fitting in to mid to large rooms. 4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants. Equipped with an AI lens for automated PTZ functionality, the VC550 delivers a full view of meeting attendees. The Smart Gallery feature pictures each meeting participant for clear viewing from the remote side.

Enquire on WhatsAppDownload Catalogue
Specifications

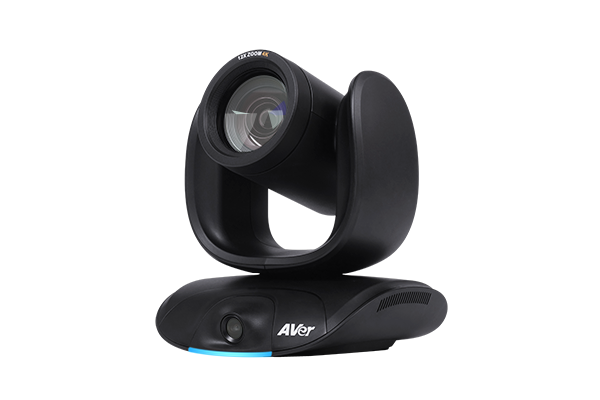

Dual Lens Camera (CAM550)

PTZ optical zoom lens
Image Sensor: 1/2.8” 4K Sony Exmor CMOS Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps 24*X Zoom: 12X optical; 2X digital zoom Wide field of view: DFOV 85°; HFOV 76°; VFOV 46° Lens focal length: 3.9mm (wide) ~ 47.3mm (tele) Lens F#: 1.8 (wide) ~ 2.8 (tele) AE, white balance: auto, manual override via Room Management Minimum focus distance: 1.5m Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down) Preset number: 10 via IR remote, 128 via RS232
Secondary fixed lens (AI lens)
Image Sensor: 1/2.5” 4K Sony Exmor CMOS Frame rates and resolution set according to PTZ lens settings Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

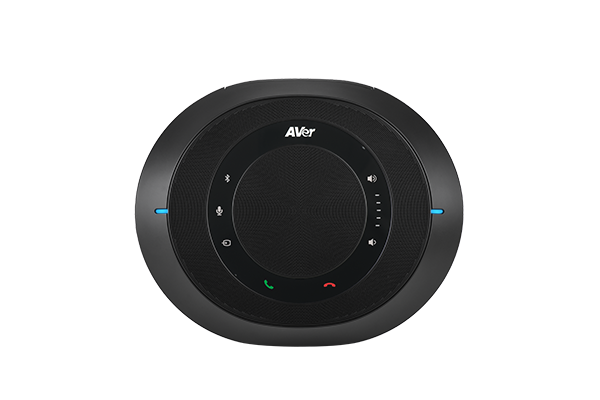

Speakerphone (FONE540)

Wireless Bluetooth / USB Wired for PC
Full duplex microphone array speakerphone
Two omnidirectional microphones support 360° pickup
Full duplex echo cancellation
Advanced noise suppression
Powerful wideband voice processing
Speaker volume: adjustable to 90 dB SPL at 0.5 m
3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones
Touch controls for volume adjustment, mute, phone input, call, and hang up
Can bridge phone-in and USB into one call
Kensington lock

HDMI & PoE

HDMI 1.3: 1080p 30fps/ 60fps
PoE+: 802.3at

Video Format

YUV, YUY2, MJPEG
Network video compression format: H.264, H.265
Network protocol: RTSP, RTMP

USB

3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video)

Control

Camera
IR remote control VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC plug and play WebUI: Browser IP access via Chrome (Not support IE) OSD setting: HDMI out to TV monitor Room Management Support
Speakerphone
UAC, plug and play WebUI: Browser IP access via Chrome (Not support IE) Room Management Support

Power Supply

Camera
AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A PoE+: 802.3at
Speakerphone
AC 100V to 240V, 50/60 Hz Consumption: 12V, 5A

Free Applications for Meeting Collaboration (For Windows® and Mac® computers)

EZManager 2: Camera Central Management Software
Remotely group FW/SW upgrades, control the camera, and manage settings
Room Management: Camera Settings Software
Smart gallery/Virtual USB streaming/Preset Link View live video, participant metrics, and meeting-interval information Enable Skype for Business far-end control Upgrade firmware automatically/manually Control the camera Set parameters and adjust the camera image View operation status, diagnose issues
EZLive: Broadcasting Software
Multi-camera real-time streaming, annotating, image capturing, and video recording

Environment Data

Operation temperature: 0 to 40°C
Operation humidity: 20% to 80%
Storage temperature: -20 to 60°C
Storage humidity: 20% to 80% E

Dimensions

Package dimensions: 348(L)*251(W)*308(H) mm
Package weight: 7.9kg
Camera: 170.8(L) x 190.5 (H) x 173(D) mm/ 2.1kg
Speakerphone: 220(L)x 49.5(D) x 181.5(H) mm/ 0.8kg
Remote control: 200 x 50 x 21 mm/ 90g

Innovative features

Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically re-frame all participants.
Preset framing tracks both preset area and speaker*
Simultaneous 3-way output: USB, HDMI and IP connections
Gesture control provides intuitive camera controls
HDMI Picture in Picture (PIP) function
Smart gallery** function creates great visibility
Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB.)
Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.

Connectivity

Camera

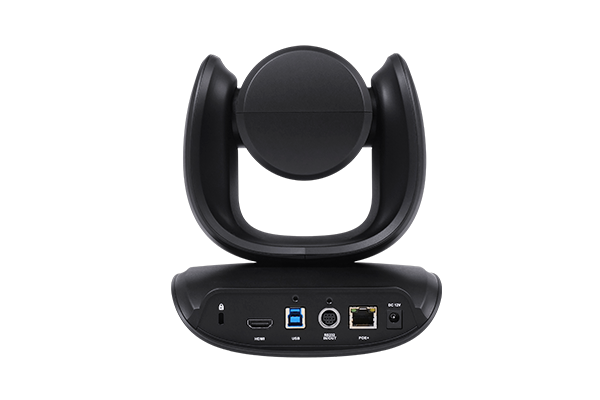

USB type-B 3.1 connector, backward compatible with USB 2.0 12V/2A DC jack power adapter Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) IP (RJ45) HDMI
Speakerphone
USB2.0 Micro USB connector 12V/5A DC jack power adapter LAN for IP remote access Expansion port (daisy-chain speakerphone or microphone) 3.5 mm phone-in jack 3.5 mm line out

Package Contents

CAM550 unit
FONE540 unit
Power adapter x2
Power cord x2
USB3.1 Type-B to Type-A cable (3 m) for camera
Micro USB 2.0 to Type-A cable (5 m) for speakerphone
Remote control
Mini DIN9 to mini DIN8 RS232 adapter cable
HDMI cable (3 m)
3.5 mm aux cable
Wall mount bracket and screws
QR code card
Tripod screw

Optional Accessories

Mini DIN8 to D-Sub9 cable
Ceiling mount*
Foldable TV mount
USB 2.0 type-B Cable
USB 3.1 Extension Cable (10 m/20 m/30 m)
Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)

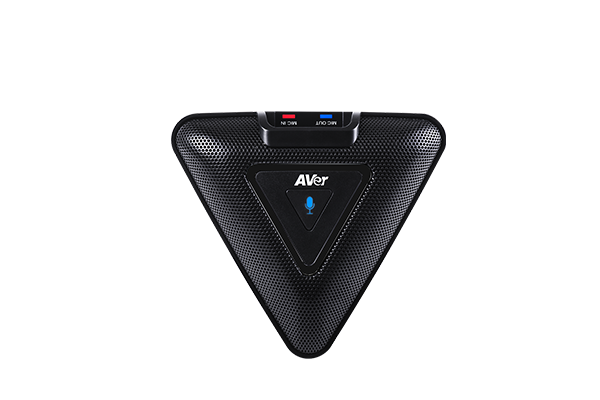

Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)

Security and Mount

Kensington lock
1/4'tripod mounting screw
Camera wall-mount bracket included
Optional foldable TV mount

System Requirements

Windows® 7/10/11
MacOS X 10.14 or later
Chromebox 3 version 94.0.4606.114 or later

Warranty

Camera, Speakerphone: 3 years*
Accessories: 1 year

Hardware Specs

3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
  1. *Please use Room Management to set up 24X zoom
  2. *Please don't put the CAM550 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.
  3. *Make sure preset areas are within AI lens' view.
  4. ** Smart gallery function will be available in Q2 2022 via FW update.
  5. ***Please download Room Management to set up Smart gallery, USB virtual streaming and Preset Link functionality.
  6. *CAM550 is a dual lens camera and doesn't support upside-down installation. For ceiling mounting, please see the AVer ceiling mount.
  7. *For 4K UHD support, please check system/hardware requirements with your software application provider.
