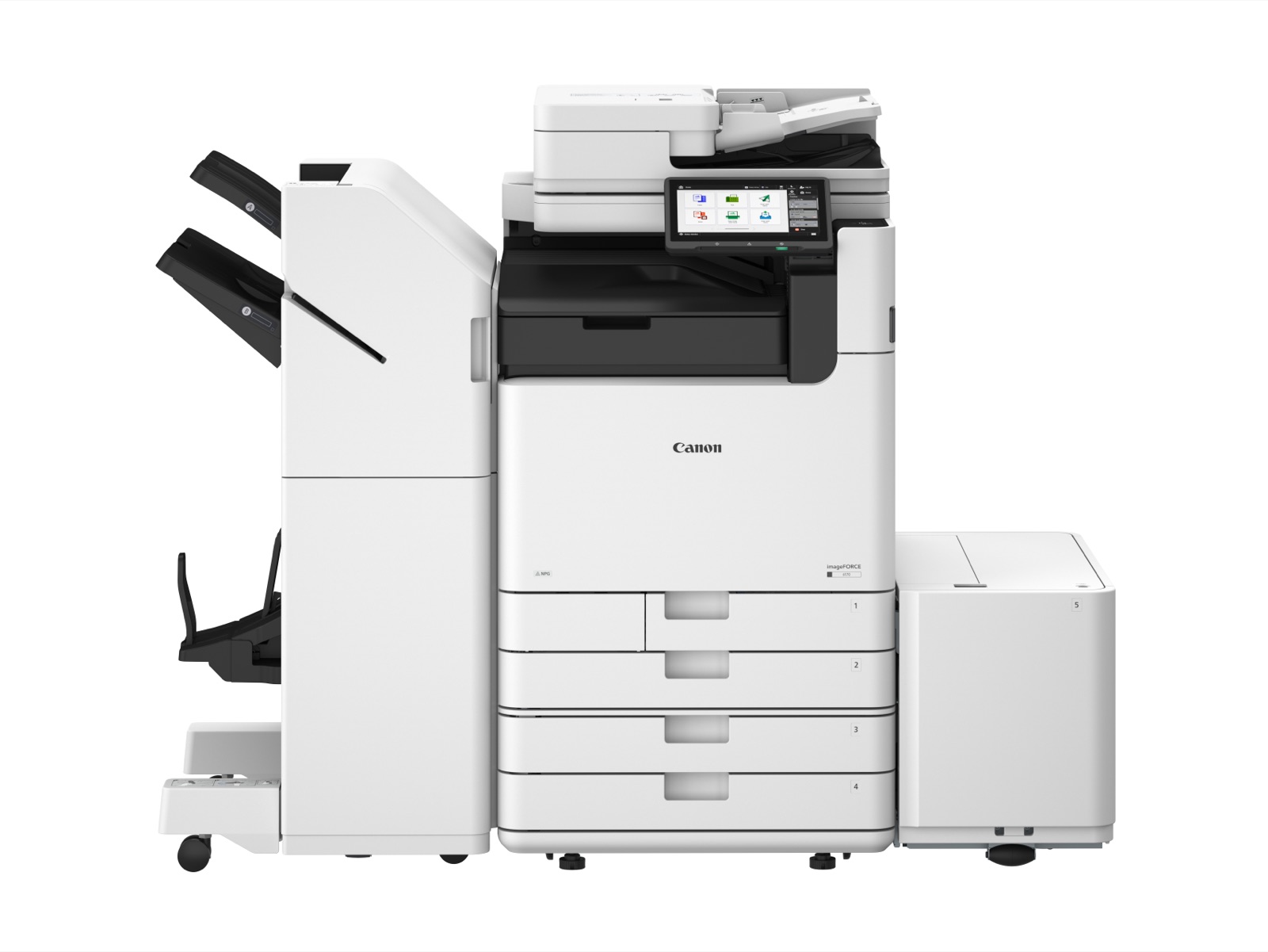

imageFORCE 6100 series

A3 Monochrome Multifunctional

Print, Copy, Scan, Send, Store and Optional Fax

Dual Core Processor

10.1" TFT LCD WSVGA Colour Touch panel

Standard: RAM: 6.0 GB

Standard: (SSD) 256 GB Optional: (SSD) 1 TB

NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface

Standard: 1,200 sheets 100-sheet Multi-purpose tray x 1 550-sheet Paper cassette x 2 Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-F1 + Paper Deck Unit-F2/F3)

Standard: 250 sheets Maximum: 3,450 Sheets (with Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2 and 3rd Copy Tray Kit-A1)

Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, V-fold, C-fold, Z-fold

Multi-purpose Tray: Thin, Plain, Recycled, Eco, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Cassette (Upper/Lower): Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope²

Multi-purpose Tray: Standard Size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Envelopes: COM 10 No.10, Monarch, DL, ISO-C5 Envelope Custom Size: 98.0 x 98.0 mm to 320.0 x 457.2 mm Upper Cassette: Standard Size: A4, A5, A5R, A6R, B5 Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 Lower Cassette: Standard Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Multi-purpose Tray: 52 to 300 gsm Paper Cassette (Upper): 52 to 256 gsm Paper Cassette (Lower): 52 to 300 gsm Duplex: 52 to 256 gsm

Quick Startup Mode: 4 seconds or less³ From Power On: 6 seconds or less⁴ From Sleep Mode: 7 seconds or less (imageFORCE 6170) 6 seconds or less (imageFORCE 6160/6155)

620 x 722 x 937 mm

Basic: 1,050 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) Fully Configured: 2,044 x 1,162 mm (Staple Finisher-AB3/Paper Folding/Booklet Finisher-A2 with the extension tray extended + Paper Folding Unit-L1 + Paper Deck Unit-F2/F3 + Cassette Drawers open)

Approx. 97 kg

imageFORCE 6170 Up to 70 ppm (A4, A5⁶, A5R, A6R⁶), up to 36 ppm (A3), up to 42 ppm (A4R) imageFORCE 6160 Up to 60 ppm (A4, A5⁶, A5R, A6R⁶), up to 32 ppm (A3), up to 36 ppm (A4R) imageFORCE 6155 Up to 55 ppm (A4, A5⁶, A5R, A6R⁶), up to 29 ppm (A3), up to 36 ppm (A4R)

4,800 x 2,400

Standard: UFR II, PCL6/PCL5 Optional: Adobe PostScript 3

Supported file types: PDF, EPS, TIFF/JPEG, and XPS

AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.

Android/Windows® 10/Windows® 11/Chrome OS/macOS (11.2.2 or later) /iOS (15.2 or later)/iPadOS

PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T⁷ (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts⁸

UFRII: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later) PCL: Windows® 10/11/Server2016/Server2019/Server2022/Server2025 PS: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later) PPD: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later) As of Dec. 2024

imageFORCE 6170 Up to 70 ppm (A4, A5⁶, A5R, A6R⁶), up to 36 ppm (A3), up to 42 ppm (A4R) imageFORCE 6160 Up to 60 ppm (A4, A5⁶, A5R, A6R⁶), up to 32 ppm (A3), up to 36 ppm (A4R) imageFORCE 6155 Up to 55 ppm (A4, A5⁶, A5R, A6R⁶), up to 29 ppm (A3), up to 36 ppm (A4R)

imageFORCE 6170: Approx. 2.7 seconds or less imageFORCE 6160: Approx. 2.9 seconds or less imageFORCE 6155: Approx. 2.9 seconds or less

600 x 600

Up to 9,999 copies

Automatic or Manual (9 Levels)

Variable zoom: 25% to 400% (1% Increments)

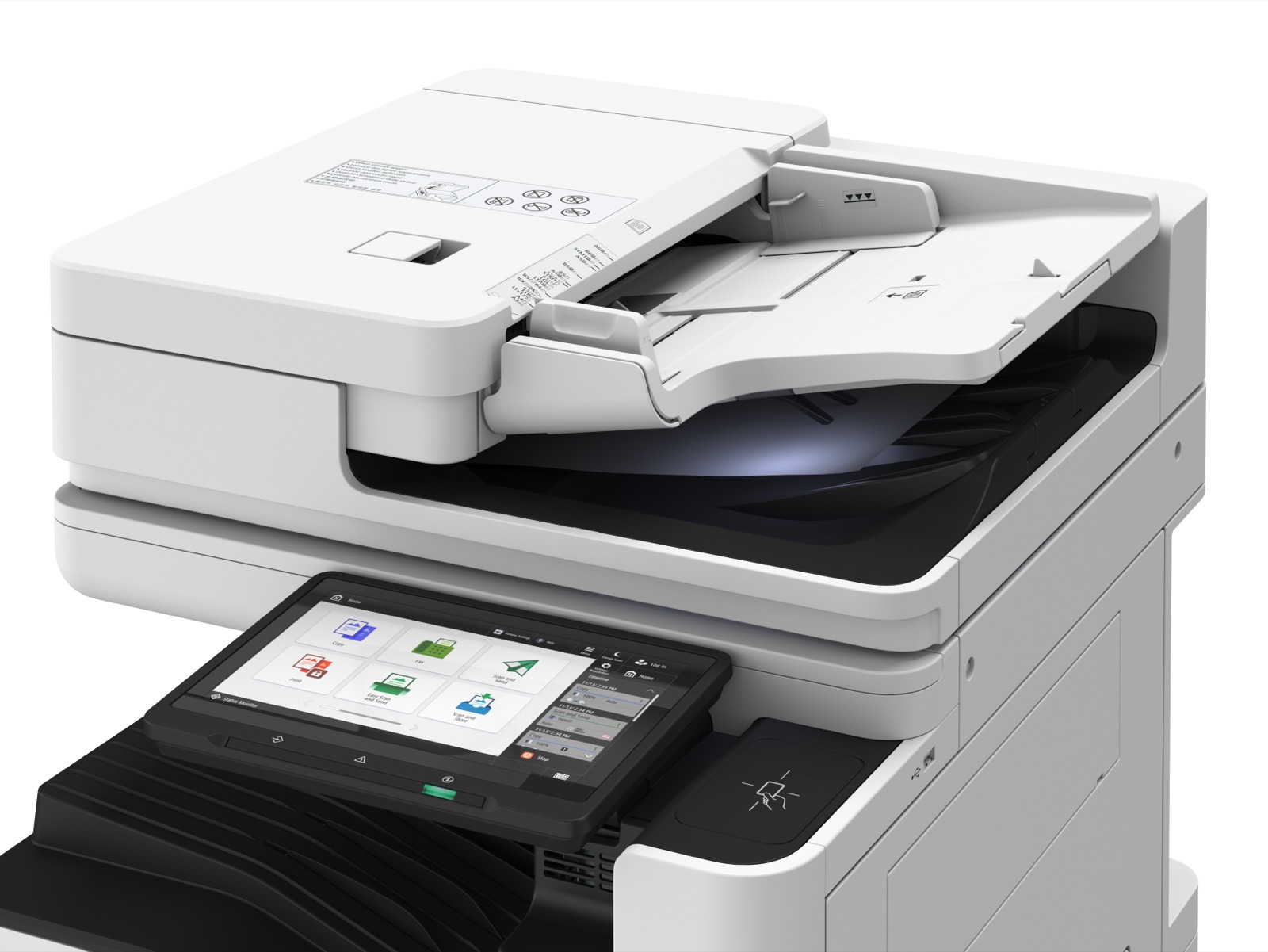

Single-pass Duplexing Automatic Document Feeder⁹ [2-sided to 2-sided (Automatic)]

Up to 200 Sheets

Document Feeder media weight: 38 to 220 gsm Note: An acceptable weights of A6R or smaller is 50 to 220 gsm.

Platen scanning size: Up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

600 x 600

Colour Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server2016/Server2019/Server2022/Server2025 As of Dec. 2024

Standard: E-mail/Internet FAX (SMTP¹⁰), SMB, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax

LDAP (2,000)/Local (1,600)/One-touch (200)

File: FTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3

TIFF (MMR), JPEG¹¹, PDF (Compact, Searchable, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

4

Super G3: 33.6 kbps G3: 14.4 kbps

MH, MR, MMR, JBIG

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending: A3, A4, A4R, A5¹², A5R¹², A6R¹², B4, B5¹³, B5R¹² Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R

Up to 30,000 pages (2,000 jobs)

Max. 200

Max. 199 dials

Max. 256 addresses

Yes

100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored as a guideline

Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 10/11 Concurrent Connections (Max.): SMB: 64, WebDAV: 3

Standard: 16 GB (With option: Max. 480 GB)

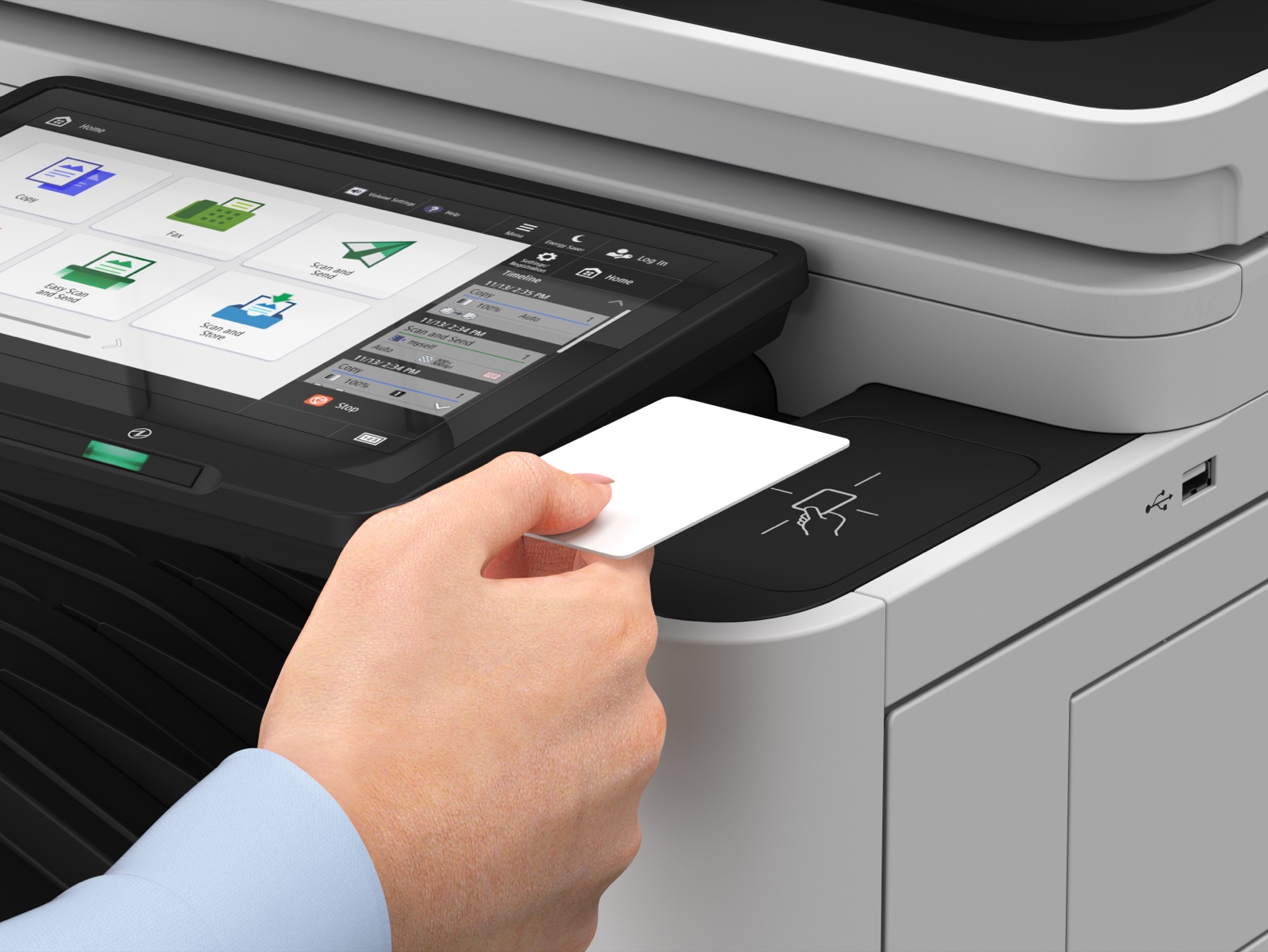

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOWOnline/uniFLOW(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication(Password Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print¹⁴), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3(Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception

Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 Purge Level), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification¹⁵

Administrator Password, Digital Certificate And Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM: Security Information and Event Management), Image Data Logging, Security Policy Setting

Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity)

220-240 V, 50/60 Hz, 6 A

Maximum: imageFORCE 6170: Approx. 2,000 W imageFORCE 6160/6155: Approx. 1,800 W Sleep mode: Approx. 0.5 W¹⁶

NPG-1002 Toner BK

NPG-1002 Toner BK: 65,500 pages

uniFLOW Online

iW Enterprise Management Console Monitoring Service Remote Distribution & Management Service

Colour Network ScanGear 2

Canon Driver Configuration Tool

MEAP (Multifunctional Embedded Application Platform)

Paper Capacity: 2 x 550 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 300 gsm

Paper Capacity: 2,450 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 300 gsm

(Requires Cassette Feeding Unit-AY1 or High Capacity Cassette Feeding Unit-F1) Paper Capacity: 2,700 sheets (80 gsm) Paper Type: Thin, Plain, Colour, Recycled, Heavy, Pre-punched Paper Size: A4, B5 Paper Weight: 52 to 256 gsm

Capacity (with 80 gsm paper): A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 100 sheets Paper Weight: 52 to 300 gsm

(Requires 1st Copy Tray Kit-B1) Tray Capacity (with 80 gsm paper) Upper Tray: A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 50 sheets Paper Weight: 52 to 300 gsm

Capacity (with 80 gsm paper): A4, A5R, B5: 100 sheets A3, A4R, B4, B5R: 75 sheets Paper Weight: 52 to 300 gsm

Tray Capacity (with 80 gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Lower Tray: A4, A5, A5R, B5: Approx. 500 sheets A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets SRA3, Envelope: 10 sheets Paper Weight: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: Approx. 40 sheets (80 gsm)

(Requires Buffer Pass Unit-R1) Tray Capacity (with 80 gsm paper): Upper Tray: A4, A5, A5R, A6R, B5: Approx. 250 sheets SRA3, A3, A4R, B4, B5R: Approx. 125 sheets Lower Tray: A4, A5, A5R, B5: 3,000 sheets SRA3, A3, A4R, B4, B5R: 1,500 sheets A3, B4 (Z-fold¹⁸): 30 sheets A4R (Z-fold¹⁸): 10 sheets A6R: 250 sheets Envelopes: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets Paper Weight: Upper Tray: 52 to 256 gsm Lower Tray: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: (52 to 90 gsm) A4, B5: 65 sheets A4R: 40 sheets A3, B4: 30 sheets Eco Staple: A3, A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: 65 sheets (52 to 90 gsm)

(Requires Buffer Pass Unit-R1) (Includes the above Staple Finisher-AB3 basic staple specifications) Saddle Stitch/V-fold Paper Size: A3, A4R, B4 C-fold Paper Size: A3, A4R, B4 Saddle Stitch Staple Capacity: Up to 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm) V-fold Capacity: Up to 5 sheets (52 to 105 gsm) C-fold Capacity: A4R: Up to 6 sheets (52 to 90 gsm), up to 5 sheets (91 to 128 gsm) A3, B4: Up to 5 sheets (64 to 128 gsm)

(Requires Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) Paper Size: A3, A4R, B4

(Requires the Inner Finisher-N1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes: A3, A4, B4, B5

(Requires the Inner Finisher-N1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4

(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes: A3, A4, B4, B5

(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4
