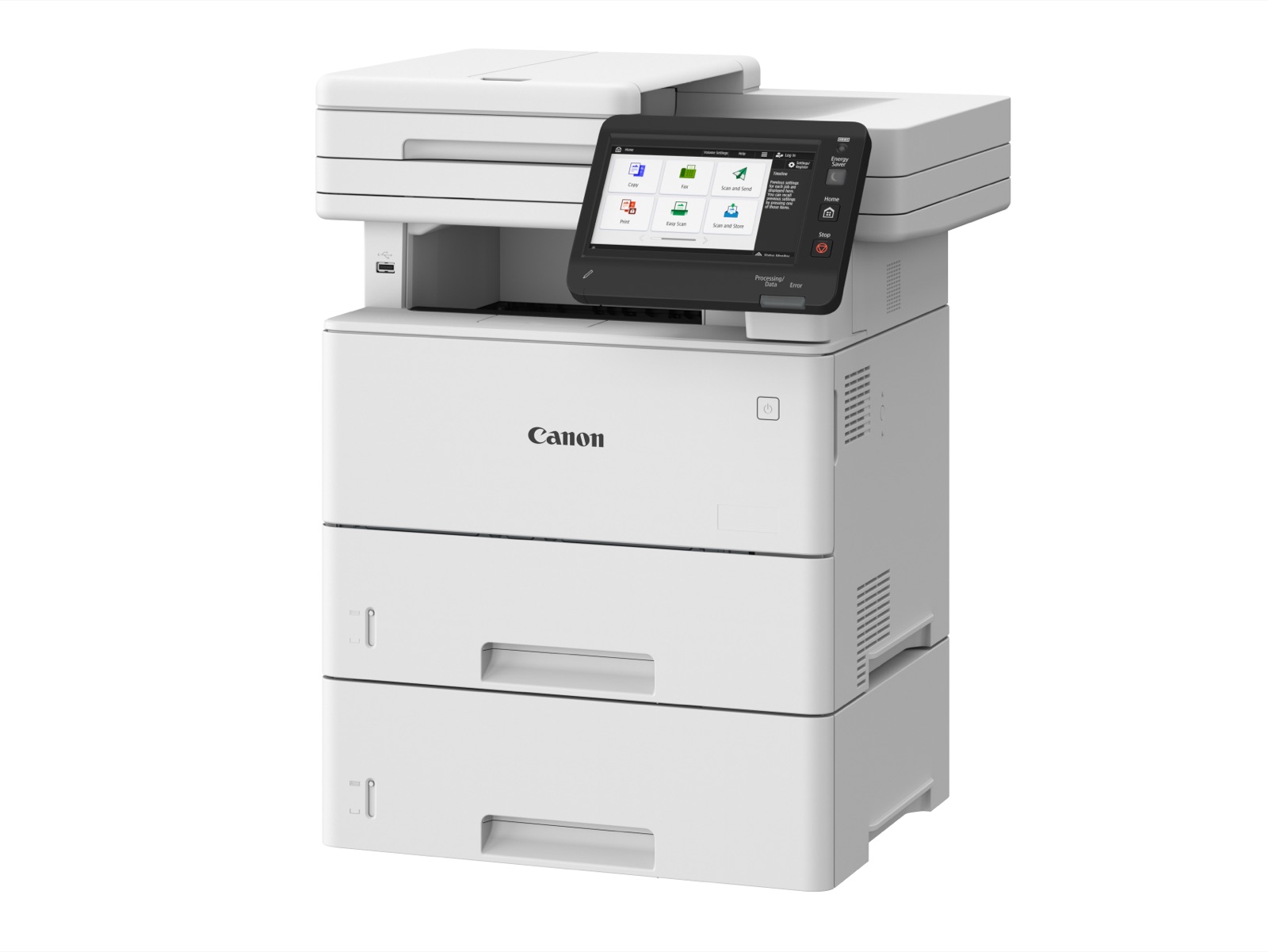

imageFORCE 1643 series

A4 monochrome laser multifunctional

imageFORCE 1643F: Print, copy, scan, send and fax imageFORCE 1643: Print, copy, scan, send

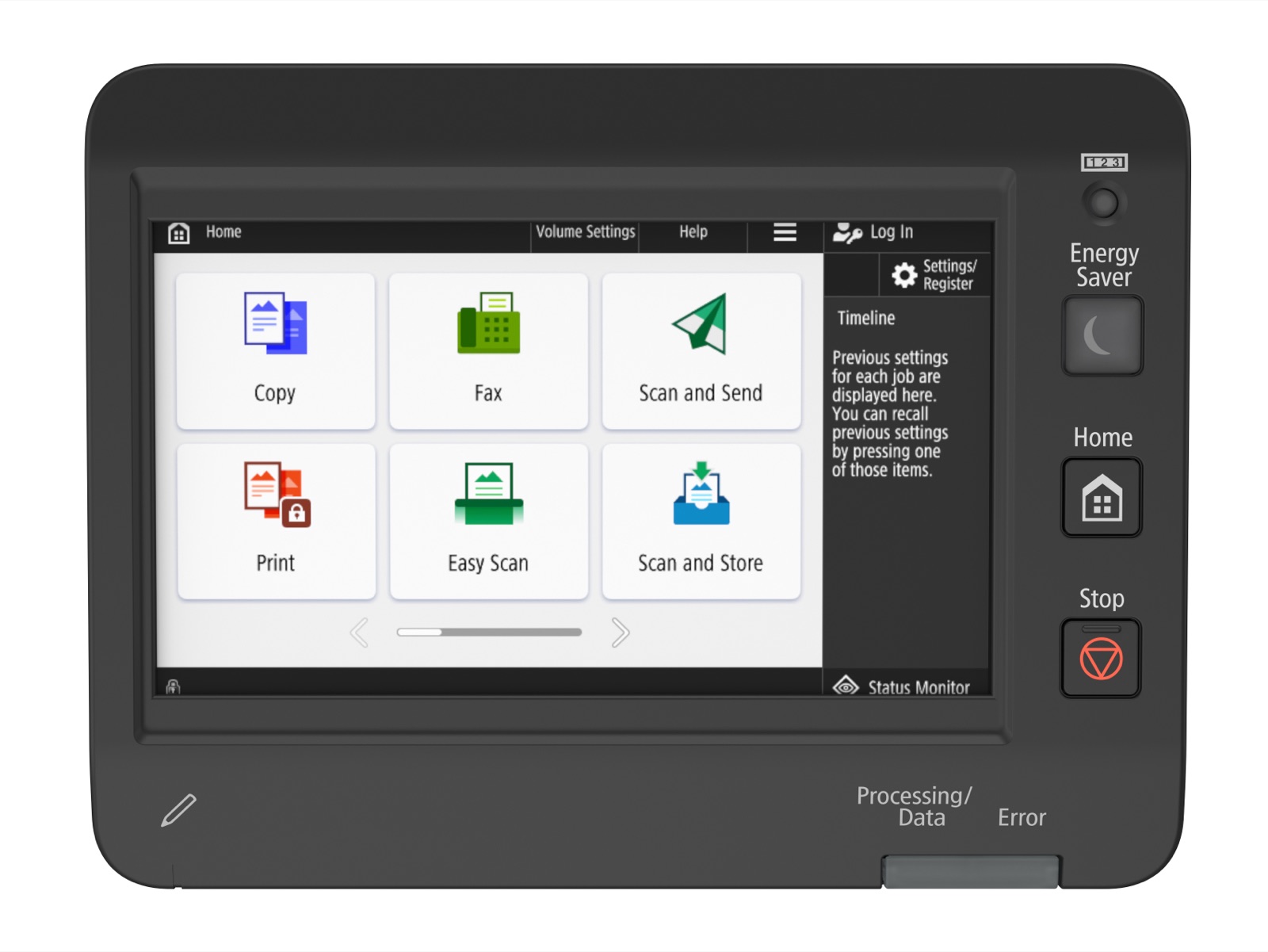

7-inch TFT LCD WVGA colour touch panel

2.0 GB RAM

30 GB eMMC

NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) ×2, USB 2.0 (Device) ×1

TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print¹), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

Standard: Paper cassette: 550 sheets Multi-purpose tray: 100 sheets Maximum: 2300 sheets (with paper feeder PF-C1)

150 sheets

T06 Toner BK: 20,500 pages

Paper cassette: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, 16K, F4A (CHN) Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) Multi-purpose tray: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, Index Card Envelope: COM10, Monarch, C5, DL (Overseas) Custom (Min. 76.2 × 127.0 mm to Max. 216.0 × 355.6 mm)

Paper cassettes: 60 to 120 gsm Multi-purpose tray: 60 to 199 gsm Duplex: 60 to 120 gsm

Quick startup mode: 4 Seconds or less² From sleep mode: 20 Seconds or less

480 × 518 × 458 mm

480 × 668 mm³

Approx. 55.1 lb (25 kg)

1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6) 2-sided: Up to 36 ppm (A4)

600 dpi × 600 dpi

Standard: UFR II, PCL6/PCL5, Adobe® PostScript®3™

Supported file types: PDF, EPS, TIFF/JPEG, and XPS

AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information

UFRII: Windows®10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PPD: Windows® 10/11, macOS (10.15 or later) Note: At the timing of Jul, 2025.

1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6), up to 45 ppm (Letter) 2-sided: Up to 36 ppm (A4), up to 37 ppm (Letter)

A4: Approx. 6.3 sec

600 × 600 dpi (Platen / default) 600 × 600 dpi (ADF) 300 × 600 dpi (ADF / default)

Up to 9,999 copies

Automatic or manual (9 levels)

Variable zoom: 25% to 400% (1% increments)

Standard: Single-pass Duplexing Automatic Document Feeder

Up to 50 sheets

Document feeder media size: A4, B5, A5, A6, LGL, LTR, STMT Custom size: 48.0 × 85.0 to 216.0 × 355.6 mm

1-sided scanning: 50/50 (300 × 300 dpi, send), 50 (300 × 600 dpi, copy) 2-sided scanning: 100/100 (300 × 300 dpi, send), 100 (300 × 600 dpi, copy)

Scan for copy: up to 600 dpi × 600 dpi Scan for send: (Push, BW) up to 600 dpi × 600 dpi, (Pull, BW) up to 600 dpi × 600 dpi (Push, CL) up to 300 dpi × 300 dpi, (Pull, CL) up to 300 dpi × 300 dpi Scan for fax: up to 600 dpi × 600 dpi

Color Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 As of Dec. 2024

Standard: E-mail / Internet FAX (SMTP⁵), SMB, FTP, WebDAV, Mail Box

LDAP (2,000) / Local (1,600) / Speed dial (200)

File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3

TIFF (MMR), JPEG, PDF (Compact, OCR (Text Searchable), Optimise for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, OCR (Text Searchable), Device Signature, User Signature), Office Open XML (PowerPoint, Word)

1

Super G3: 33.6 kbps G3: 14.4 kbps

MH, MR, MMR, JBIG

400 × 400 (Ultra fine), 200 × 400 (Super fine), 200 × 200 (Fine), 200 × 100 (Normal)

Up to 30,000 pages (2,000 jobs)

Max. 200

Max. 199 dials

Max. 256 addresses

220-240 V, 50/60 Hz, 3.4 A

Maximum: Approx. 1,400 W Sleep mode: Approx. 1.0 W⁶

Paper capacity: 550 sheets Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Letterhead Paper size: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm)
