imageFORCE C3100 series

A3 colour multifunctional

Print, copy, scan, send, store and optional fax

Canon dual custom processor (Shared)

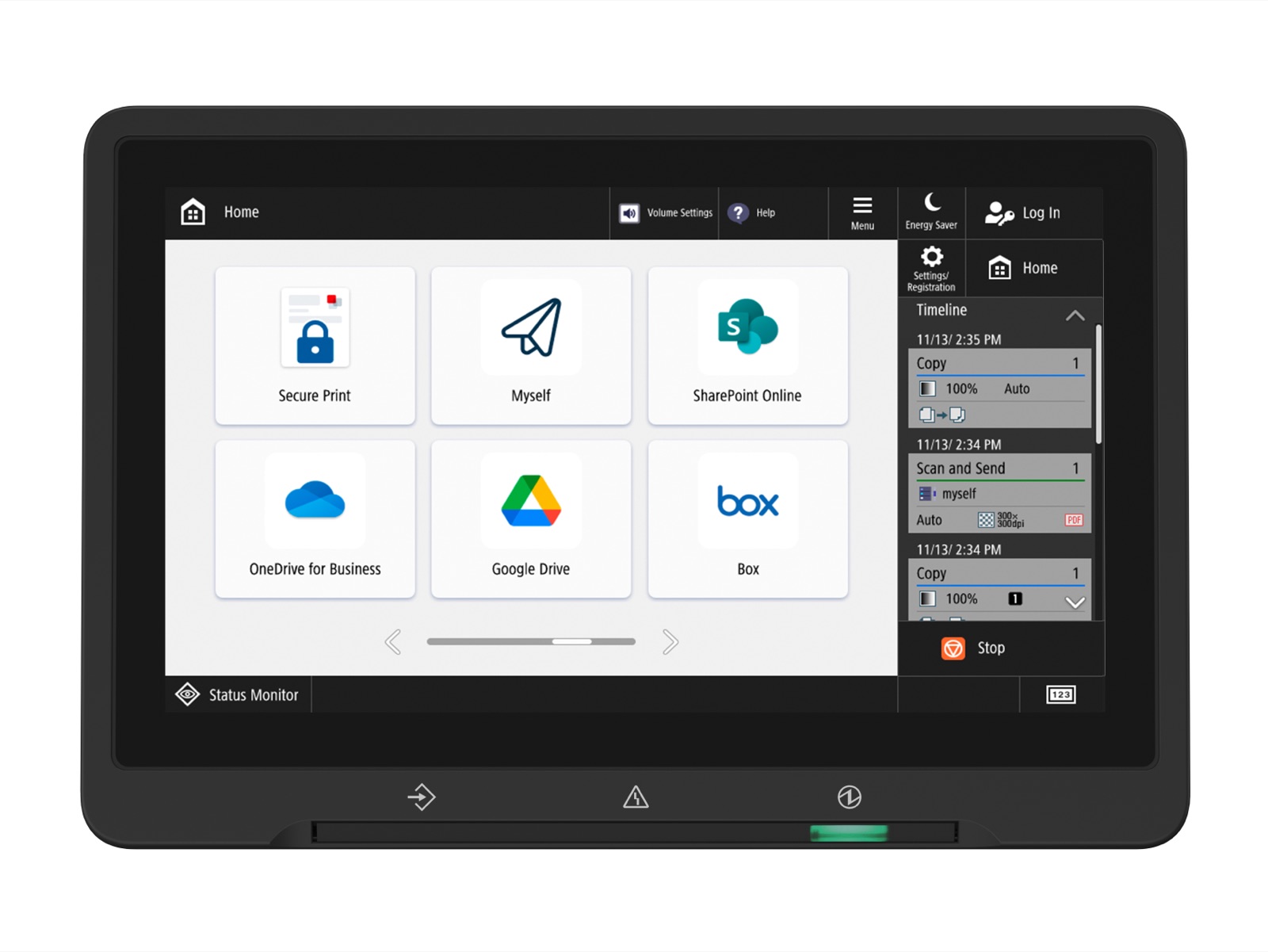

10.1-inch TFT LCD WSVGA colour touch panel

Standard: RAM 5.0 GB

Standard: (SSD) 256 GB Optional: (SSD) 1 TB

NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11 a/b/g/n/ac/ax) OTHERS Standard: USB 2.0 (Host) ×1, USB 3.0 (Host) ×1, USB 2.0 (Device) ×1 Optional: Serial interface

Standard: 1,200 sheets 100 sheets: Multi-purpose tray ×1 550 sheets: Standard cassette ×2 Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-G1 + Paper Deck Unit-F3)

Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AH1 or Booklet Finisher-AH1 and Copy Tray-T2)

Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated¹, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope Upper cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope² Lower cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope³

Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 × 139.7 mm to 320.0 × 457.2 mm Free size: 100.0 × 148.0 mm to 304.8 × 457.2 mm Long sheet⁴: 98.4 × 457.3 mm to 320.0 mm × 1,200.0 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 × 98.0 mm to 320.0 × 457.2 mm Upper cassette: Standard size: A4, A5, A5R, A6R, B5 Custom size: 105.0 × 148.0 mm to 297.0 × 215.9 mm Envelopes: ISO-C5 Lower cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes³: COM10 No.10, Monarch, DL

Multi-purpose tray: 52 to 300 gsm (Only 60 to 300 gsm supported with Media Adjustment Kit-A1⁵) Upper/lower cassette: 52 to 256 gsm Duplex: 52 to 220 gsm

Quick startup mode: 4 seconds or less⁶ From power ON: 10 seconds or less⁷ From sleep mode: 10 seconds or less

With platen cover-Y3: 565 × 745 × 788 mm With single pass DADF-E1: 565 × 745 × 897 mm With single pass DADF-F1: 565 × 745 × 862 mm

Basic: 978 × 1,141 mm (right door & multi-purpose tray opened + paper cassette opened) Fully configured: 1,806 × 1,141 mm (with Single Pass DADF-E1/F1 + Staple Finisher-AH1/Booklet Finisher-AH1 + Paper Deck Unit-F3 + paper cassette open)

With platen cover-Y3: Approx. 77 kg With single pass DADF-E1: Approx. 91 kg With single pass DADF-F1: Approx. 84 kg

imageFORCE C3135: 1-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) 2-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) imageFORCE C3130: 1-sided: Up to 30 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 30 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) imageFORCE C3126: 1-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) imageFORCE C3122: 1-sided: Up to 22 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 22 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R)

4800 dpi × 2400 dpi

Standard: UFR II Optional: PCL6/PCL5, Adobe® PostScript®3™

PDF, EPS, TIFF/JPEG, XPS

AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information

Android, Windows® 11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS

PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T⁹ (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts¹⁰

UFR II: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PCL: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PPD: Windows® 11, macOS (11.7 or later) As of Mar. 2026

imageFORCE C3135: 1-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) 2-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) imageFORCE C3130: 1-sided: Up to 30 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 30 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) imageFORCE C3126: 1-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) imageFORCE C3122: 1-sided: Up to 22 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 22 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R)

imageFORCE C3135: Approx. 5.5/7.4 seconds or less imageFOCE C3130/C3126/C3122: Approx. 6.1/8.4 seconds or less

600 dpi × 600 dpi

Up to 999 copies

Automatic or manual (9 levels)

Variable zoom: 25% to 400% (1% increments)

Standard: Colour platen Optional: Platen Cover-Y3, Single Pass DADF-E1¹¹ or Single Pass DADF-F1¹¹ [2-sided to 2-sided (Automatic with DADF)] DADF: Duplexing Automatic Document Feeder

Single pass DADF-E1: Up to 200 sheets Single pass DADF-F1: Up to 100 sheets

Document feeder media weight: Single pass DADF-E1: 1-sided scanning: 38 to 220 gsm 2-sided scanning: 38 to 220 gsm Note: An acceptable weights of A6R or smaller is 50 to 220 gsm. Single pass DADF-F1: 1-sided scanning: 38 to 128 gsm 2-sided scanning: 50 to 128 gsm

Platen: Max. scanning size: 297.0 × 431.8 mm Single pass DADF-E1: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 69.9 × 139.7 mm to 304.8 × 431.8 mm Single pass DADF-F1: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 48.0 × 85.0 mm to 304.8 × 431.8 mm

Single pass DADF-E1: 1-sided scanning: 135/135 (300 × 300 dpi, send), 80/80 (600 × 600 dpi, copy) 2-sided scanning: 270/270 (300 × 300 dpi, send), 160/90 (600 × 600 dpi, copy) Single pass DADF-F1: 1-sided scanning: 80/80 (300 × 300 dpi, send), 60/60 (600 × 600 dpi, copy) 2-sided scanning: 120/120 (300 × 300 dpi, send), 60/60 (600 × 600 dpi, copy)

600 dpi × 600 dpi

Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 As of Mar. 2026.

Standard: E-mail/Internet FAX (SMTP¹²), SMB, FTP, SFTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax

LDAP (2,000) / Local (1,600) / Speed dial (200)

File: FTP (TCP/IP), SFTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/iFax: SMTP (send), POP3 (receive)

TIFF (MMR), JPEG¹³, PDF (Compact, Searchable, Optimise for Web, PDF/A-1b, PDF/A-1a, PDF/A-2a, PDF/A-2b, PDF/A-2u, PDF/A-3a, PDF/A-3b, PDF/A-3u, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

2

Super G3: 33.6 kbps G3: 14.4 kbps

MH, MR, MMR, JBIG

400 × 400 (Ultra fine), 200 × 400 (Super fine), 200 × 200 (Fine), 200 × 100 (Normal)

Sending: A3, A4, A4R, A5¹⁴, A5R¹⁴, A6R¹⁴, B4, B5¹⁵, B5R¹⁴ Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R

Up to 30,000 pages (2,000 jobs)

Max. 200

Max. 199 dials

Max. 256 addresses

Yes

100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 10,000 Pages (2,000 jobs) Stored

Communication protocol: SMB or WebDAV Supported client PC: Windows® 11¹⁶ Concurrent connections (Max.): SMB: 64, WebDAV: 3 As of Mar. 2026

Standard: 16 GB (With option: Max. 480 GB)

Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW¹⁷ (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Google Workspace (Pasword Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print¹⁷), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark

TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception

Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification (Validation pending)

Administrator Password, Digital Certificate and Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM), Image Data Logging, Security Policy Setting

Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative humidity)

110 V - 127 V 60 Hz 8.5 A 220 V - 240 V 50 / 60 Hz 5 A

Maximum: Approx. 1,500 W Sleep mode: Approx. 0.5 W¹⁸

NPG-1007 toner BK/C/M/Y NPG-1007L toner C/M/Y

NPG-1007 toner BK: 36,000 pages NPG-1007 toner C/M/Y: 19,000 pages NPG-1007L toner C/M/Y: 2,500 pages

uniFLOW Online

iW Enterprise Management Console Remote Distribution & Management Service Monitoring Service

Color Network ScanGear 2

Canon Driver Configuration Tool

MEAP (Multifunctional Embedded Application Platform)

Paper capacity: 550 sheets × 2 (1,100 sheets) (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 × 148.0 mm to 304.8 × 457.2 mm Paper weight: 52 to 256 gsm

Paper capacity: 2,450 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper size: A4 Paper weight: 52 to 256 gsm

Paper capacity: 2,700 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Pre-punched, Letterhead Paper size: A4, B5 Paper weight: 52 to 105 gsm

Capacity (with 80 gsm paper) Upper tray: A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 100 sheets Paper weight: 52 to 300 gsm

Capacity (with 80 gsm paper): A4, A5R, B5: 100 sheets A3, A4R, B4, B5R: 75 sheets Paper weight: 52 to 220 gsm

Tray capacity (with 80 gsm paper): Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Long sheet length of up to 900.0 mm: 1 sheet Lower tray: A4, A5, A5R, B5: approx. 500 sheets A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets SRA3, envelope: 10 sheets Paper weight: 52 to 300 gsm Staple position: Corner, double Staple Capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple on demand: Approx. 40 sheets (80 gsm)

(Requires Inner Finisher-N1) Two or three holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5

(Requires Inner Finisher-N1) Two or four holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4

Tray capacity (with 80 gsm paper): Upper tray: A4, A5, A5R, A6R, B5: Approx. 250 sheets SRA3, A3, A4R, B4, B5R: Approx. 125 sheets Lower tray: A4, A5, A5R, B5: 3,000 sheets SRA3, A3, A4R, B4, B5R: 1,500 sheets A6R: 250 sheets Envelope: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets Note: Long sheet length of up to 1,200.0 mm: 1 sheet (ejected to the top of the buffer pass unit and the finisher) Paper weight: Upper tray: 52 to 256 gsm Lower tray: 52 to 300 gsm Staple position: Corner, double Staple capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco staple: A3, A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple on demand: 50 sheets

(Includes the above Staple Finisher-AH1 basic staple specifications) Saddle stitch paper size: A3, A4R, B4 Saddle stitch staple capacity: 20 sheets × 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm) Non staple folded bunch capacity: up to 3 sheets (52 to 105 gsm) Dimensions (W × D × H): 637 × 623 × 1,021 mm (when the extension tray is extended) Weight: Approx. 53.0 kg

(Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1) Two or three holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes: A3, A4, B4, B5

(Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1) Two or four holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4
